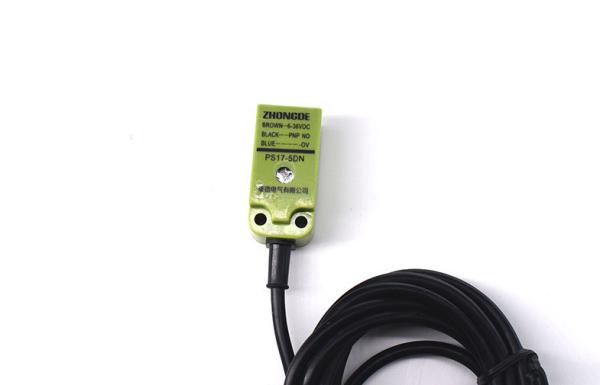

Oil Prevention Safety Proximity Switch High Repeated Positioning Accuracy

Product Categories

Zhejiang Zhongde Electric Co., Ltd.

Contact Now

Name: Oil Prevention Safety Proximity Switch High Repeated Positioning Accuracy
Brand: Zhongde
Price: 1 USD

Ask Lasest Price
Model Number :	PS17-5DN
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000only 8day
Brand Name :	Zhongde
Certification :	CE

Add to Cart

Oil Prevention Safety Proximity Switch High Repeated Positioning Accuracy

Features

* Short circuit protection

* IP67 rated

* Small size ,long life

* High precision of repeated location

* Good anti-interference

* Wide range of voltage

* Dust proof, vibration proof, waterproof and oil proof

Details

Three-wire

NPN

Normally open

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
