Magnetic Metal 3 Wire Inductive Sensor Non - Contact High Switching Frequency

Ask Lasest Price
Model Number :	LJ8A3-1-Z/EX
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000only 8day
Brand Name :	Zhongde
Certification :	CE

Add to Cart

Product Details
Company Profile

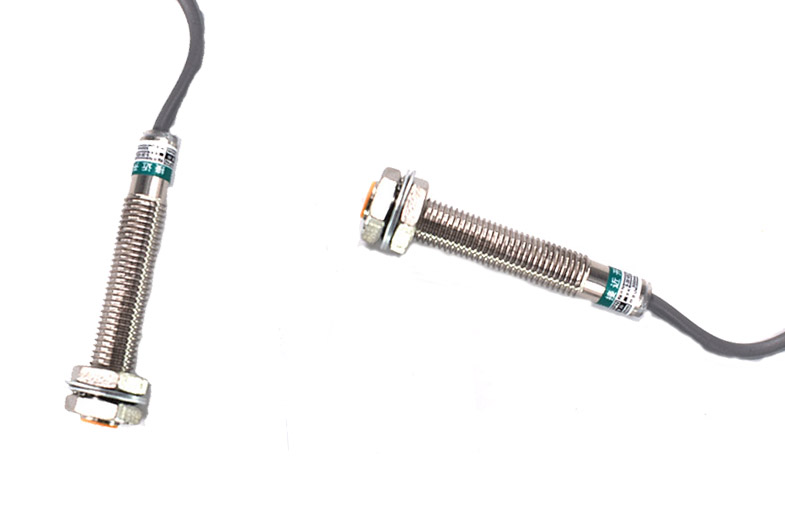

Magnetic Metal 3 Wire Inductive Sensor Non - Contact High Switching Frequency

Magnetic Metal 3 Wire Inductive Sensor Non - Contact High Switching Frequency

Description

Inductive proximity switches have stable quality ,durable and friendly to use.

Features

Red LED checks the state of the proximity witch
High repeated positioning accuracy
High switching frequency
Wide voltage range
Anti vibration, dust, water and oil prevention
Reverse power protection, short circuit protection, directly connecting with PLC
Two-wire NPN/PNP normally open DC

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.
