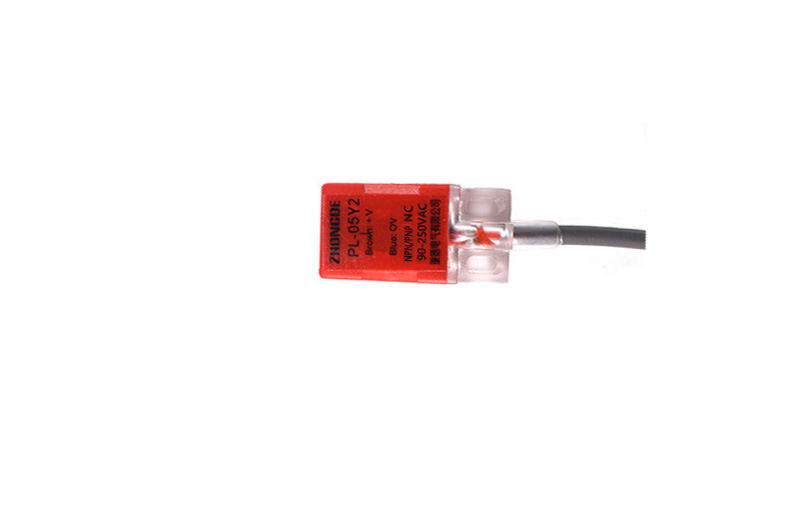

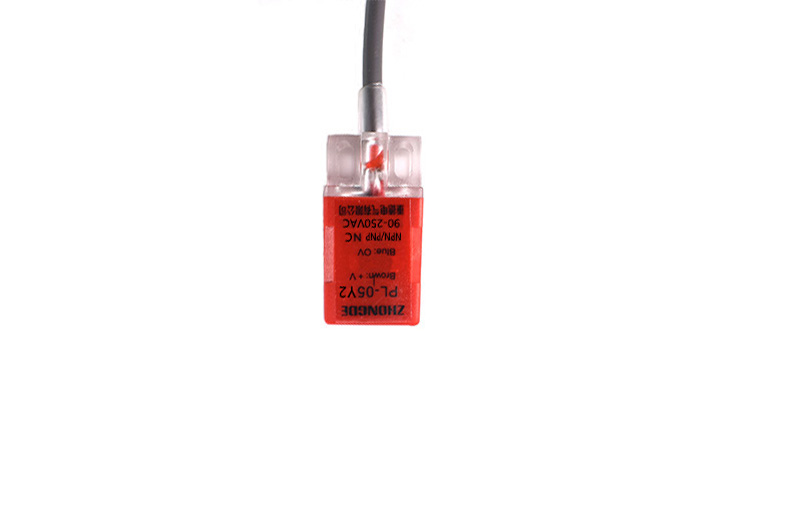

Magnetic Metal NC Proximity Switch Inductive Type Red Color Good Stability

Working principle

The switch contains high-frequency oscillation circuit, detection circuit, amplifier circuit, the solution circuit and the output circuit. When the power is supplied to the switch, the oscillator in the high frequency oscillation circuit generates an alternating electromagnetic field on the detection surface of the switch. When there is a metal close to the switch detection surface, the eddy current inside the metal absorbs the energy of the alternating electromagnetic field in the oscillator. The oscillator is weakened or stopped. Oscillator energy changes in the two states, the detection circuit is converted to a level signal, through the amplifier circuit to amplify the level signal after the trigger circuit to trigger the output transistor transistor circuit to produce a switch signal. Thereby detecting the presence or absence of the metal. To achieve the purpose of metal detection.

Two-wire NPN/PNP normally closed AC

Parameter

Note:Please read the "Precautions" of the product manual before use.

Features

Reverse power protection, short circuit protection, can be directly connected to the PLC

Economical and simple operation

Long life and high reliability, strong environmental resistance

Red LED reality can detect sensor working status

IP67 protection structure (IEC)
