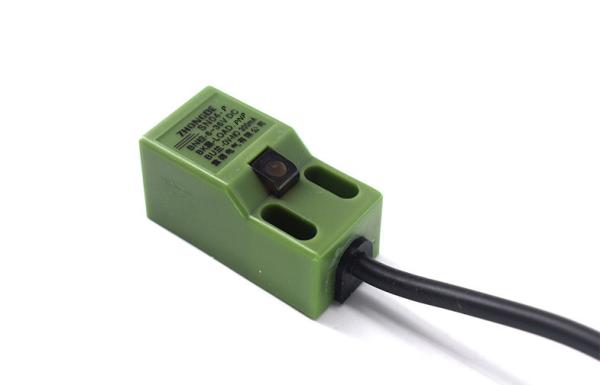

Oil Prevention PNP NO Proximity Sensor Strong Environmental Resistance

Ask Lasest Price
Model Number :	SN04-P
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000only 8day
Brand Name :	Zhongde
Certification :	CE

Add to Cart

Product Details
Company Profile

Oil Prevention PNP NO Proximity Sensor Strong Environmental Resistance

Oil Prevention PNP NO Proximity Sensor Strong Environmental Resistance

Description

With extended sensing range, quality construction and very high noise immunity, our inductive proximity switch is the ideal choice for even the most demanding inductive sensing applications.

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.

Details

Three-wire

PNP

Normally open

About us

Zhongde is a scientific and technological multi-element enterprise integrating scientific research, production, industry and trade. Its main production and operation: proximity switch, photoelectric switch, photoelectric power supply, sensor, solid state relay, amorphous alloy transformer, large special transformer, small relay, double Power automatic switch, dry variable temperature controller, dry variable fan, electric welder, arc welder and other products, the series of products have obtained CE product certification.
