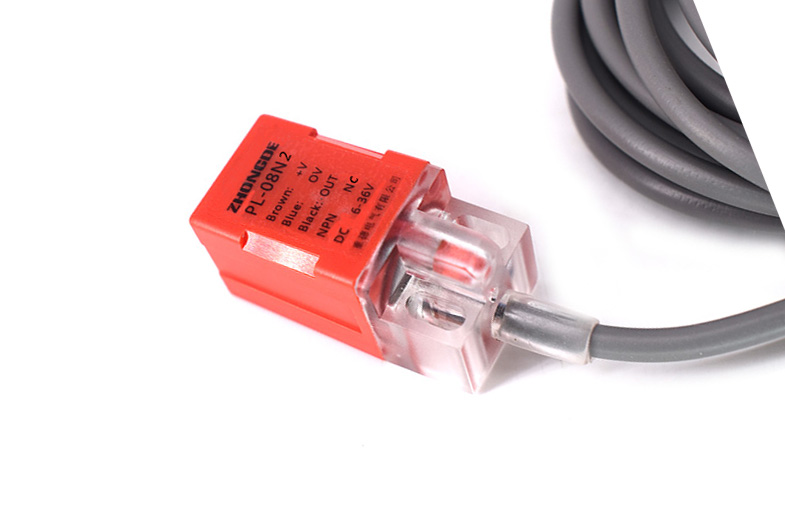

Name: Three Wire NPN Proximity Switch NPN Sensor Connection To PLC Oil Prevention
Brand: Zhongde
Price: 1 USD

Ask Lasest Price
Model Number :	PL-08N2
Price :	Negotiable
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	1000only 8day
Brand Name :	Zhongde
Certification :	CE

Add to Cart

Three Wire NPN Proximity Switch , NPN Sensor Connection To PLC Oil Prevention

Description

The NPN Proximity Switch is a component widely used in automatic control industry for detecting, controlling, and non-contact switching.

Three-wire NPN normally closed DC

Parameter

Lag distance	Less than 10% of the detection distance
Detecting objects	Magnetic metal (detection distance is reduced when non-magnetic metal)
voltage	DC : DC 12~24 (6~36V) pulse (p-p) below 10%
voltage	AC : AC 110~220V (36~250V) 50/60Hz
Current consumption	N.P : ≤13mA
	D : ≤0.8mA
	A : ≤1.7mA
Control output	N.P : ≤300mA
	D : ≤200mA
	A : ≤400mA
Loop protection	N.P.D : reverse connection protection, surge absorption, load short circuit protection
Loop protection	A : surge absorption
Ambient temperature	-30~+65°C (no icing, no condensation)
Ambient humidity	-35~95%RH
Insulation resistance	50MΩ or more (DC500 megohmmeter) (between charging part and housing)
Withstand voltage	AC 1000V 50/60HZ 1min (between charging part and Housing)
Temperature effect	-30~+65°C: detection distance error ±15% at +23°C
Temperature effect	-25~+60°C: detection distance error ±10% at +23°C
Voltage effect	6-36V (90-250V) : ±15% of detection distance error
Voltage effect	10-30V (220V) : ±10% of detection distance error
Protection level	IP67 (IEC)
Material	Housing: ABS
Material	Detection surface: ABS

Note:Please read the "Precautions" of the product manual before use.

Features

Reverse power protection, short circuit protection, can be directly connected to the PLC

Economical and simple operation

Long life and high reliability, strong environmental resistance

Red LED reality can detect sensor working status

IP67 protection structure (IEC)
